Timber to Masonry Joist Hanger

Original price was: £2.55.Current price is: £2.00. Excluding VAT

22% Off

In stock

Additional information

Dimensions N/A
Categories: SKU: N/A
Be the first to leave a review.

Description

The JHM and JHMI range of joist hangers can be used to connect solid sawn joists, trusses and engineered joists to masonry walls or steel beams.

FEATURES

Material

  • Pre-galvanised mild steel

Benefits

  • Built-in inspection slot at the base of the hanger to aid inspection from the ground
  • Top flange provides widest area in contact with masonry support allowing superior performance.
  • Embossments on JHM stiffen top flange and holes allow improved mortar keying.
  • JHM side flange on deeper hangers is much higher than traditional style, providing greatly enhanced resistance to joist rotation.

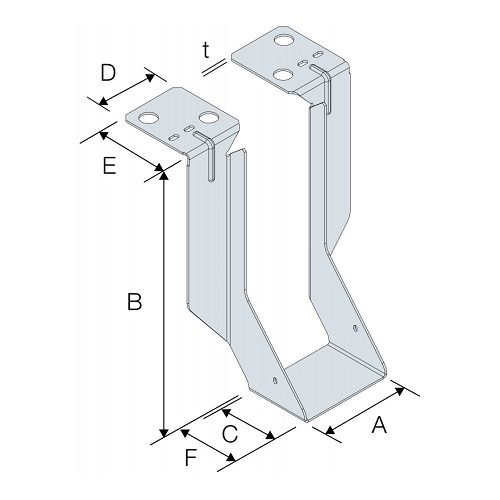

References Joist dimensions [mm] Hanger Dimensions [mm] Joist holes
Width Height A B C D E F t Ø4
JHM150/47 47 150 47 140 64 64 75 75 2 2
